VEGA PULS WL S 61產品技術說明

將新型雷達解決方案用于水利經濟和廢水處理領域

用于水利經濟和廢水處理行業簡單應用的VEGA雷達物位傳感器也已配備藍牙功能。

VEGAPULS WL S 61，VEGA的新型傳感器，用于測量水和廢水水位，有多種多樣的安裝方法。它是一種物美價廉的解決方案，可以很方便地整合到現有的基礎設施中。

雷達技術在諸多實際應用中久經考驗，具有很多優勢。它不僅不受溫度、風、霧或雨的影響，而且也無需補償因溫度的變化而引起的信號運行時間。一個重要優勢是 +/- 5 mm 的測量精度。

新增的一個功能是利用藍牙技術，通過智能手機、平板設備或帶有 PACTware 的電腦以及藍牙USB接口進行無線操作，該功能進一步簡化了調試或診斷工作。

使用這種新型儀表時，客戶得益于VEGA 的長年經驗。如今，幾乎有將近 40,000 臺雷達傳感器在各大水利工程設施中運行。

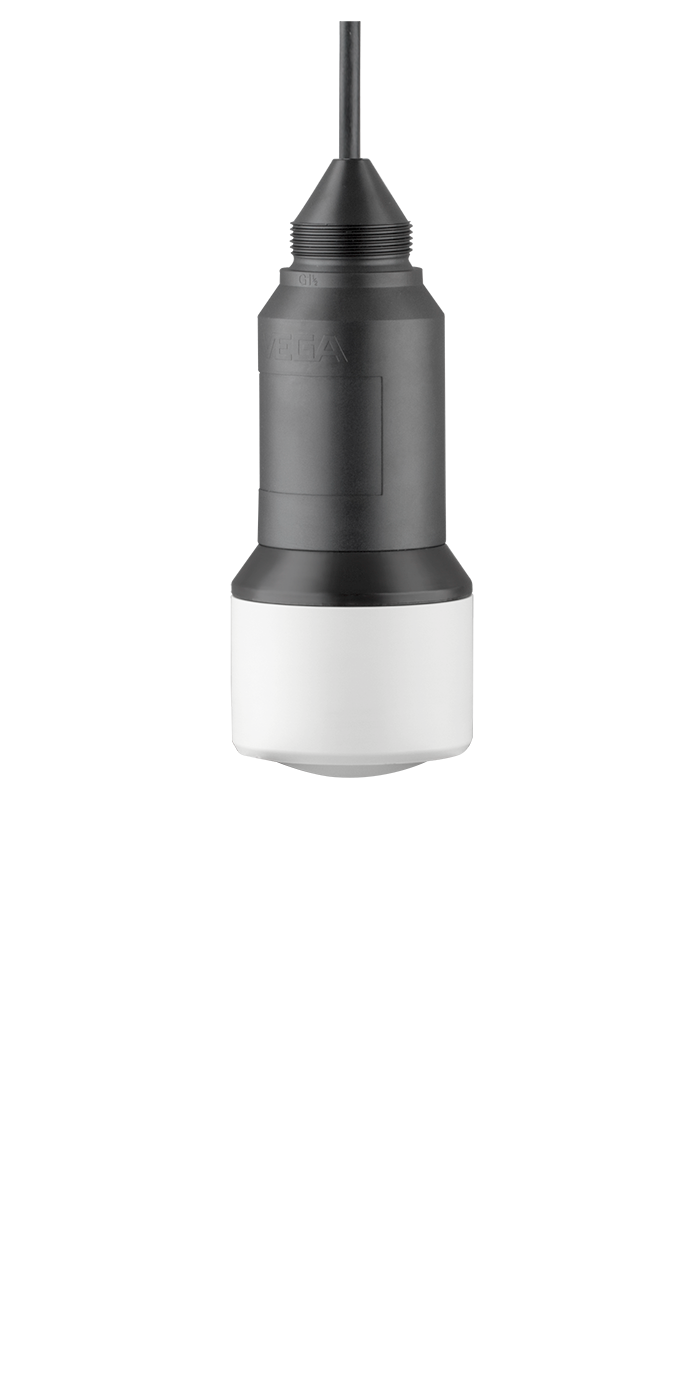

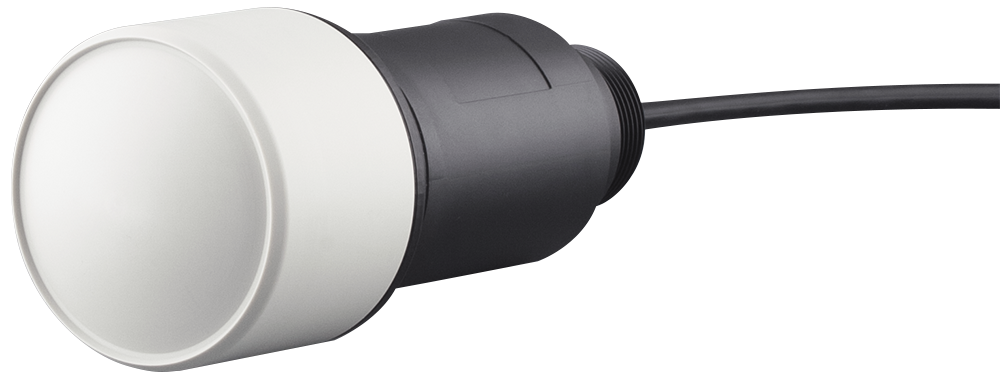

Radar sensor for continuous level measurement of water and wastewater

應用范圍

Water processing, wastewater management and gauge monitoring

The VEGAPULS WL S 61 is the ideal sensor for all typical application in water and wastewater. It is particularly suitable for level measurement in the water processing, in pump stations and overflow basins. The flood-proof IP 68 housing of VEGAPULS WL S 61 ensures a maintenance-free continuous operation. Integrated Bluetooth module for wireless communication via smartphone, tablet or PC.

您的獲益

• Exact measuring results independent of product, process and ambient conditions
• High plant availability, because wear and maintenance-free
• Maintenance-free operation through non-contact measuring principle
• Simple sensor adjustment via smartphone or tablet

技術參數

Measuring range - Distance

8 m

Process temperature

-40 ... 60 °C

Process pressure

-1 ... 2 bar

Accuracy

± 5 mm / ± 0.2"

Version

with plastic horn antenna ø 75 mm

Materials,-wetted-parts

PP/PBT/Silicone

Threaded-connection

≥ G1½, ≥ 1½ NPT

Housing-material

Plastic

Protection-rating

IP 68 (2 bar)

Output

4 … 20 mA

Ambient temperature

-40 ... 80 °C

Cable-length

12 m
